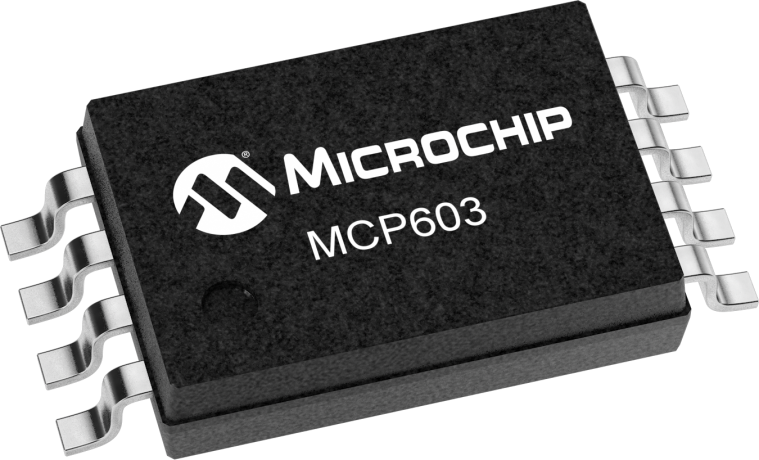

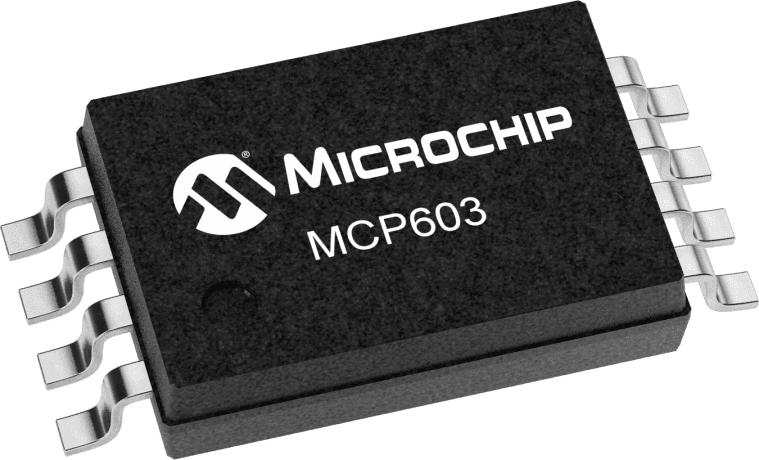

Single-channel, general-purpose operational amplifier featuring a 2.8MHz gain bandwidth product and 2.3V/µs slew rate. This CMOS amplifier offers a low input bias current of 1pA and an input offset voltage of 2mV, with a high voltage gain of 115dB. Operating from 2.7V to 6V, it provides 22mA output current and boasts a 75dB CMRR and 80dB PSRR. Packaged in a lead-free, RoHS-compliant TSSOP-8 surface-mount package, it operates across a temperature range of -40°C to 125°C.
PackageTSSOP
Current230uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP603-E/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSSOP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
2.8MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
5.5V
Output Current
22mA
Output Current per Channel
22mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
2.3V/µs
Supply Current
230uA
Technology
CMOS
Unity Gain Bandwidth Product
2.8MHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
