Quad operational amplifier featuring a 10kHz bandwidth and 150µV maximum input offset voltage. This general-purpose, CMOS amplifier offers a 1.8V to 5.5V operating supply range and a 900nA supply current. It boasts a 70dB common mode rejection ratio and power supply rejection ratio, with a 115dB voltage gain. The surface-mount TSSOP package measures 8.65mm in length, 3.9mm in width, and 1.5mm in height.
Frequency1kHz
PackageTSSOP
Current900nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6034-E/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10kHz
Package/Case
TSSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10kHz
Height
1.5mm
Input Bias Current
100pA
Input Offset Voltage (Vos)
150uV
Input Offset Voltage-Max
150uV
Lead Free
Lead Free
Length
8.65mm
Max Frequency
1kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
900nA
Output Current
23mA
Output Current per Channel
23mA
Package Quantity
96
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.004V/µs
Supply Current
900nA
Technology
CMOS
Unity Gain Bandwidth Product
10kHz
Voltage Gain
115dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6034-E/ST Datasheet
Download the complete datasheet for Microchip MCP6034-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

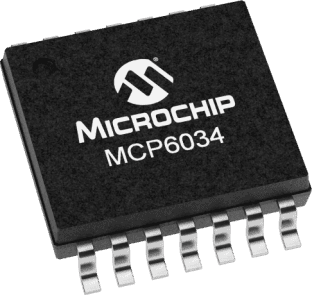

Product Images
