Single-channel, general-purpose operational amplifier featuring a 14kHz bandwidth and 115dB voltage gain. This CMOS device offers a low input bias current of 1pA and a 3mV maximum input offset voltage. Operating from 1.4V to 6V supply voltages, it provides a 21mA output current and a 0.014 MHz gain bandwidth product. Packaged in a lead-free PDIP-8 through-hole mount, it operates across a -40°C to 125°C temperature range.
PackagePDIP
Current600nA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6041-E/P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
14kHz
Package/Case
PDIP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Height
0.195inch
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
5.5V
Output Current
21mA
Package Quantity
60
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6041-E/P Datasheet
Download the complete datasheet for Microchip MCP6041-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

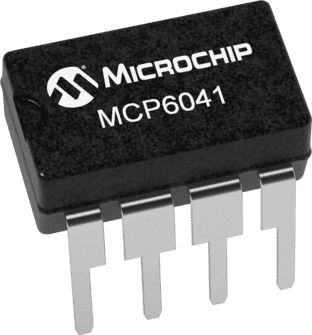

Product Images
