Dual operational amplifier featuring Rail-to-Rail input/output and a 14kHz gain bandwidth product. This general-purpose amplifier operates from a 1.4V to 6V supply, with a typical operating supply current of 600nA. It offers a 60dB common mode rejection ratio and 70dB power supply rejection ratio, with a 3mV maximum input offset voltage. Packaged in an 8-pin MSOP, this surface-mount component is RoHS compliant and designed for automotive applications.
PackageMSOP
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6042-I/MS technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Height
0.85mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
600nA
Operating Supply Voltage
5.5V
Output Current
21mA
Output Current per Channel
20mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6042-I/MS Datasheet
Download the complete datasheet for Microchip MCP6042-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

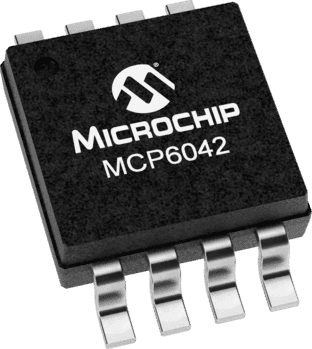

Product Images
