Dual-channel, general-purpose operational amplifier featuring a 14kHz gain bandwidth product and 3mV maximum input offset voltage. This CMOS device offers a 60dB common mode rejection ratio and 70dB power supply rejection ratio, operating from 1.4V to 6V with a typical supply current of 600nA. Housed in an 8-pin MSOP package for surface mounting, it delivers 21mA output current and boasts a 115dB voltage gain. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageMSOP
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6042T-I/MS technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5.5V
Output Current
21mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6042T-I/MS Datasheet
Download the complete datasheet for Microchip MCP6042T-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

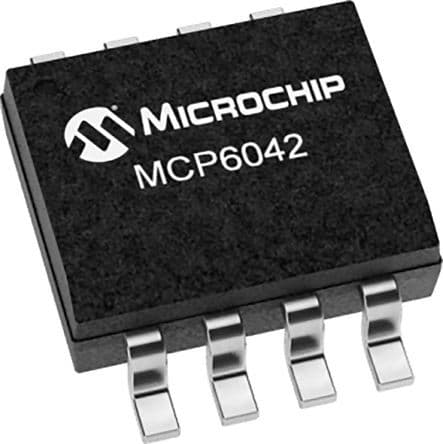

Product Images
