Four-channel, general-purpose operational amplifier featuring a 14kHz gain bandwidth product and 3mV maximum input offset voltage. This CMOS amplifier offers a 60dB common mode rejection ratio and 70dB power supply rejection ratio, operating from a 1.4V to 6V supply range. Designed for surface mounting in a 14-pin SOIC package, it provides 21mA output current and a 0.003V/µs slew rate. The component is lead-free, RoHS compliant, and operates across a temperature range of -40°C to 125°C.
PackageSOIC
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6044T-E/SL technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Voltage
5.5V
Output Current
21mA
Package Quantity
2600
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6044T-E/SL Datasheet
Download the complete datasheet for Microchip MCP6044T-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

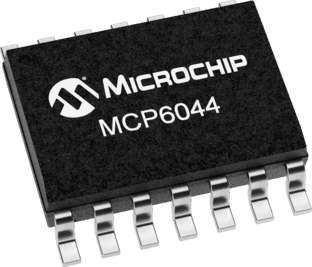

Product Images
