Quad operational amplifier featuring a 3mV maximum input offset voltage and 14kHz gain bandwidth product. This general-purpose CMOS op-amp offers a wide operating supply voltage range from 1.4V to 6V, with a typical supply current of 600nA. It boasts a 60dB common mode rejection ratio and 70dB power supply rejection ratio, with a slew rate of 0.003V/µs. Packaged in a 14-pin TSSOP for surface mounting, this RoHS compliant component is ideal for various analog circuit applications.
PackageTSSOP
Voltage5V
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6044T-I/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
600nA
Operating Supply Voltage
5.5V
Output Current
21mA
Output Current per Channel
20mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Slew Rate-Nom
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage
5V
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6044T-I/ST Datasheet
Download the complete datasheet for Microchip MCP6044T-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

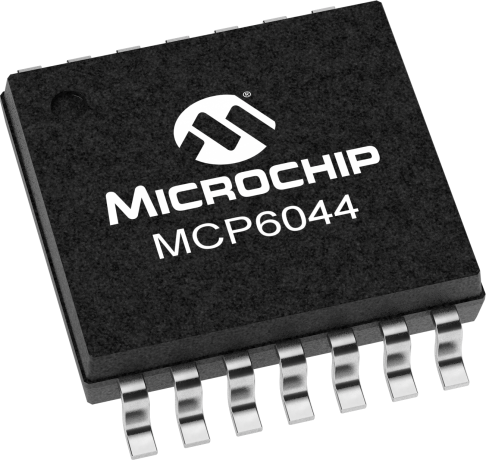

Product Images
