Single-channel, general-purpose operational amplifier featuring a 150 µV maximum input offset voltage and 730 kHz bandwidth. This CMOS amplifier offers a 0.25 V/µs slew rate, 115 dB voltage gain, and 27 mA output current. Operating from 1.8V to 6V supply voltage, it boasts a 60 µA supply current and a 72 dB CMRR. Packaged in a 5-pin SOT-23 surface-mount case, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6061T-E/OT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
730kHz
Package/Case
SOT-23
Common Mode Rejection Ratio
72dB
Gain Bandwidth Product
730kHz
Height
0.051inch
Input Bias Current
100pA
Input Offset Voltage (Vos)
150uV
Lead Free
Lead Free
Length
0.122inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current
27mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.25V/µs
Supply Current
60uA
Technology
CMOS
Unity Gain Bandwidth Product
730kHz
Voltage Gain
115dB
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6061T-E/OT Datasheet
Download the complete datasheet for Microchip MCP6061T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

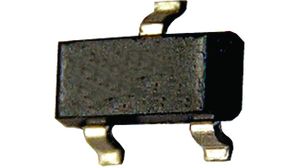

Product Images
