Dual operational amplifier featuring a 155kHz gain bandwidth product and 0.08V/µs slew rate. This general-purpose amplifier offers a low input offset voltage of 250µV and a minimal input bias current of 1pA. Operating from a 2.5V to 6V supply, it consumes 18.7µA of quiescent current. The device boasts a 75dB CMRR and 80dB PSRR, with a voltage gain of 121dB. Packaged in a 4.4mm wide, 1mm high TSSOP surface-mount package, it is RoHS compliant.
PackageTSSOP
Current25uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP607-I/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
150kHz
Package/Case
TSSOP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
155kHz
Height
1mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
250uV
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
18.7uA
Operating Supply Voltage
5.5V
Output Current
17mA
Output Current per Channel
17mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.08V/µs
Supply Current
25uA
Technology
CMOS
Unity Gain Bandwidth Product
155kHz
Voltage Gain
121dB
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP607-I/ST Datasheet
Download the complete datasheet for Microchip MCP607-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

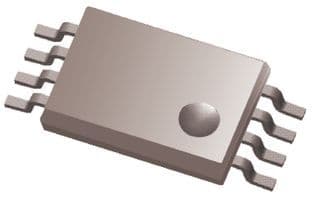

Product Images
