Dual operational amplifier featuring 1.2MHz bandwidth and 115dB voltage gain. This general-purpose CMOS op-amp offers a low input offset voltage of 150µV and 100pA input bias current. Operating from 1.8V to 6V supply, it provides 28mA output current and a 0.5V/µs slew rate. Packaged in a compact 2mm x 3mm x 0.75mm surface-mount SOIC package, it is RoHS compliant.
PackageSOIC
Current110uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6072T-E/MNY technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.2MHz
Package/Case
SOIC
Common Mode Rejection Ratio
72dB
Gain Bandwidth Product
1.2MHz
Height
0.75mm
Input Bias Current
100pA
Input Offset Voltage (Vos)
150uV
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Output Current
28mA
Package Quantity
3300
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
110uA
Technology
CMOS
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
115dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6072T-E/MNY Datasheet
Download the complete datasheet for Microchip MCP6072T-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

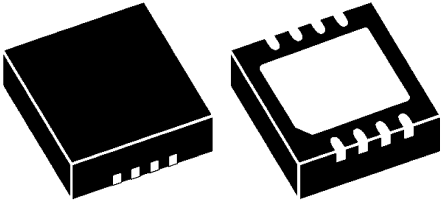

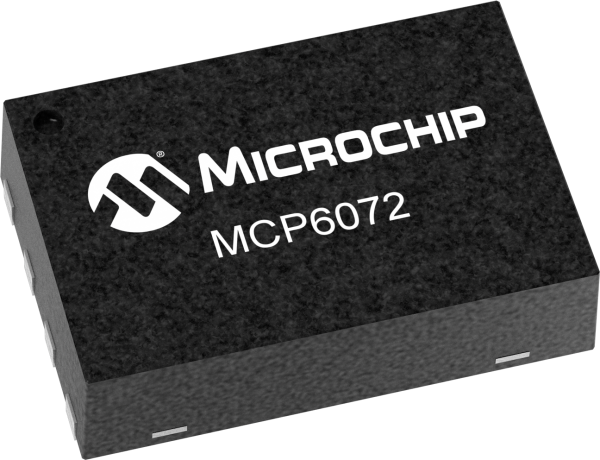

Product Images
