Quad operational amplifier featuring a 1.2MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose amplifier offers a low input offset voltage of 150µV and a high voltage gain of 115dB. Operating from 1.8V to 6V supply voltages, it provides 28mA output current per channel. The component is housed in a 14-pin TSSOP surface-mount package, with a wide operating temperature range of -40°C to 125°C.
PackageTSSOP
Current110uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6074T-E/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSSOP
Common Mode Rejection Ratio
72dB
Gain Bandwidth Product
1.2MHz
Input Bias Current
100pA
Input Offset Voltage (Vos)
150uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
110uA
Output Current
28mA
Output Current per Channel
28mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
110uA
Technology
CMOS
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6074T-E/ST Datasheet
Download the complete datasheet for Microchip MCP6074T-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

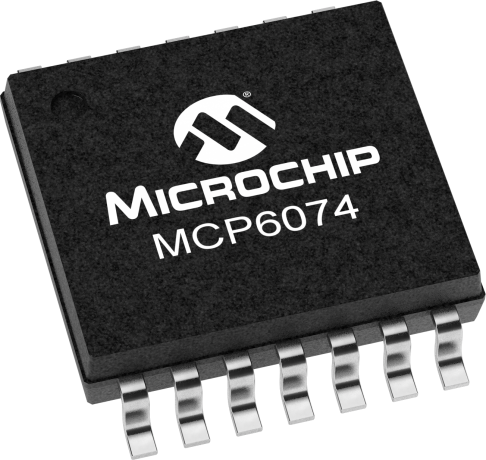

Product Images
