Quad general-purpose operational amplifier featuring Rail-to-Rail output and a 100kHz bandwidth. This CMOS IC offers a 1.4V to 5.5V supply voltage range, 600nA operating supply current, and 21mA output current. Key performance metrics include a 100kHz gain bandwidth product, 70dB PSRR, 60dB CMRR, and 115dB voltage gain. Designed for through-hole mounting in a 14-pin PDIP package, it operates from -40°C to 125°C and is RoHS compliant.
PackagePDIP
Current600nA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6144-E/P technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 100kHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 100kHz |
| Height | 0.195inch |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 19.69mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.4V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 600nA |
| Output Current | 21mA |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.024V/µs |
| Supply Current | 600nA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 100kHz |
| Voltage Gain | 115dB |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6144-E/P Datasheet
Download the complete datasheet for Microchip MCP6144-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

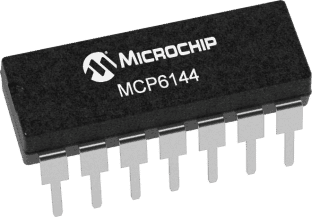

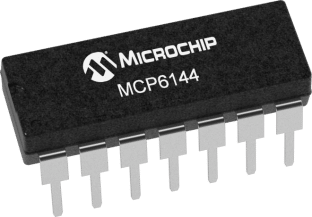

Product Images
