Quad-channel, general-purpose operational amplifier featuring a 100kHz bandwidth and Rail-to-Rail output. This CMOS IC offers a 1.4V to 5.5V supply voltage range, 600nA supply current, and 21mA output current. Key specifications include 115dB voltage gain, 0.024V/µs slew rate, 60dB CMRR, and 70dB PSRR. Packaged in a 14-pin PDIP for through-hole mounting, this RoHS compliant component operates from -40°C to 85°C.
PackagePDIP
Current600nA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6144-I/P technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 100kHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 100kHz |
| Height | 3.3mm |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 19.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.4V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Output Current | 21mA |
| Output Current per Channel | 20mA |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.024V/µs |
| Supply Current | 600nA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 100kHz |
| Voltage Gain | 115dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6144-I/P Datasheet
Download the complete datasheet for Microchip MCP6144-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

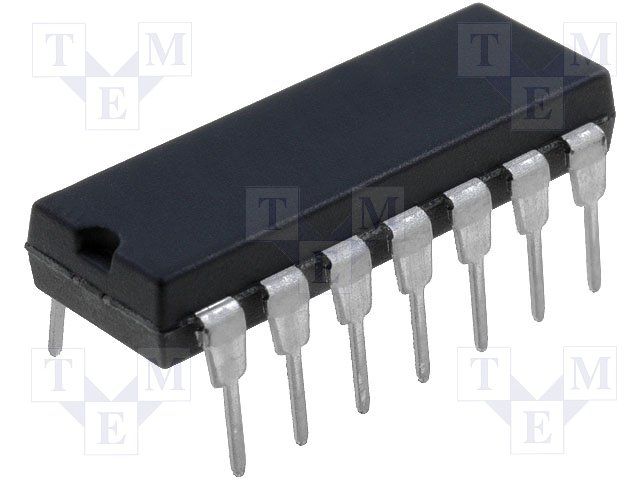

Product Images
