General purpose operational amplifier featuring a 190kHz bandwidth and 120dB voltage gain. This single-channel op-amp offers a low input offset voltage of 150µV and a 5nA input bias current. Operating from 2.3V to 5.5V supply voltage, it provides 17mA output current and a 0.08V/µs slew rate. Housed in a lead-free PDIP-8 package for through-hole mounting, it boasts 80dB CMRR and 86dB PSRR.
PackagePDIP
Current19uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP616-I/P technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 190kHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 190kHz |
| Height | 3.3mm |
| Input Bias Current | 5nA |
| Input Offset Voltage (Vos) | 150uV |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current | 17mA |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 86dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.08V/µs |
| Supply Current | 19uA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 190kHz |
| Voltage Gain | 120dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP616-I/P Datasheet
Download the complete datasheet for Microchip MCP616-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

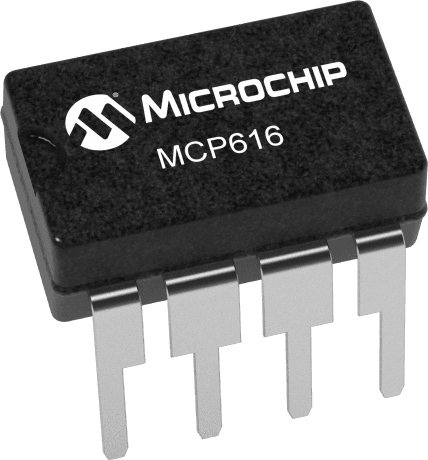

Product Images
