Dual operational amplifier featuring a 190kHz bandwidth and 0.08V/µs slew rate. This general-purpose op-amp offers a low input offset voltage of 150µV and a high voltage gain of 120dB. With a supply current of 19µA and a maximum output current of 17mA, it operates from 2.3V to 5.5V. The device is housed in a lead-free, RoHS-compliant SOIC-8 surface-mount package.
PackageSOIC
Current19uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP617T-I/SN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 190kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 190kHz |
| Input Bias Current | 5nA |
| Input Offset Voltage (Vos) | 150uV |
| Input Offset Voltage-Max | 150uV |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Current | 17mA |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 86dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.08V/µs |
| Slew Rate-Nom | 0.08V/µs |
| Supply Current | 19uA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 190kHz |
| Voltage Gain | 120dB |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP617T-I/SN Datasheet
Download the complete datasheet for Microchip MCP617T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

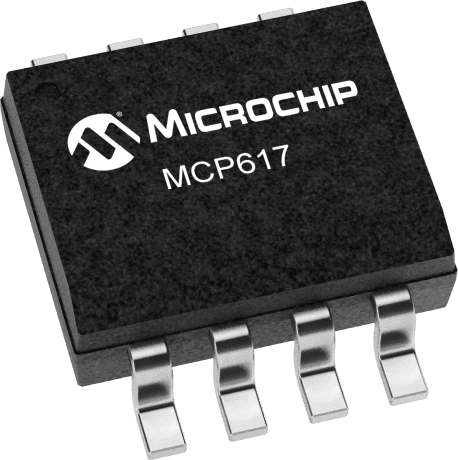

Product Images
