MCP625-E/UN

Name: MCP625-E/UN Microchip
Brand: Microchip
SKU: MCP625-E/UN

Dual Op Amp, 20MHz BW, 200uV Vos, MSOP

Dual operational amplifier featuring a 20MHz bandwidth and 200µV maximum input offset voltage. This general-purpose amplifier offers a 70mA output current per channel and a 126dB voltage gain. Operating from a 2.5V to 5.5V supply, it is housed in a compact 3mm x 3mm x 0.85mm MSOP package for surface mounting. CMOS technology ensures low 2.5mA operating supply current.

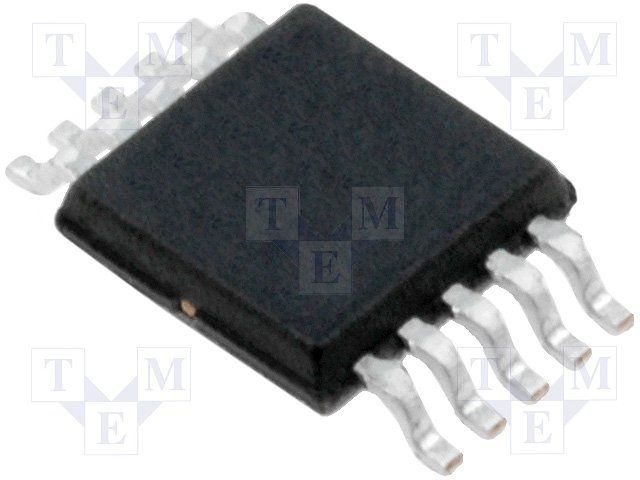

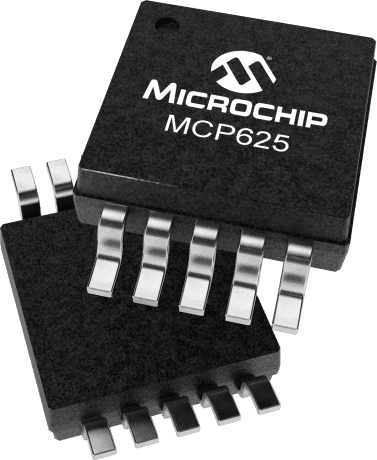

PackageMSOP

Current2.5mA

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

Microchip MCP625-E/UN technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	20MHz
Package/Case	MSOP
Common Mode Rejection Ratio	65dB
Gain Bandwidth Product	20MHz
Height	0.85mm
Input Bias Current	5pA
Input Offset Voltage (Vos)	200uV
Input Offset Voltage-Max	5mV
Lead Free	Lead Free
Length	3mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	2.5V
Mount	Surface Mount
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	2.5mA
Output Current	70mA
Output Current per Channel	70mA
Package Quantity	100
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	61dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	mCal Technology
Slew Rate	10V/µs
Slew Rate-Nom	0.3V/µs
Supply Current	2.5mA
Technology	CMOS
Unity Gain Bandwidth Product	20MHz
Voltage Gain	126dB
Width	3mm
