Dual operational amplifier featuring a 2MHz bandwidth and 25mA output current per channel. This general-purpose amplifier offers a 3mV maximum input offset voltage and a 70dB common mode rejection ratio. Operating from a 2V to 5.5V supply, it consumes 170µA of supply current. Packaged in a lead-free, surface-mount SOIC-8 package, this CMOS technology device is RoHS compliant.
PackageSOIC
Current170uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6272-E/SN technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
2MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
2MHz
Height
1.25mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
170uA
Output Current
25mA
Output Current per Channel
25mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.9V/µs
Slew Rate-Nom
0.9V/µs
Supply Current
170uA
Technology
CMOS
Unity Gain Bandwidth Product
2MHz
Voltage Gain
110dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6272-E/SN Datasheet
Download the complete datasheet for Microchip MCP6272-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

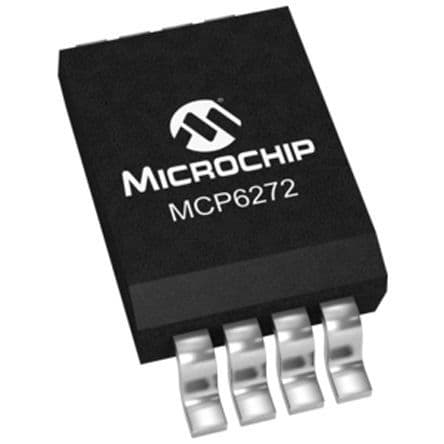

Product Images
