Dual operational amplifier featuring a 10MHz gain bandwidth product and 7V/µs slew rate. This general-purpose amplifier offers a 110dB voltage gain, 70dB CMRR, and 70dB PSRR. Operating from 2.4V to 5.5V, it draws 1mA supply current and provides 25mA output current per channel. Packaged in an MSOP surface mount configuration, it operates across a -40°C to 125°C temperature range.
PackageMSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6292T-E/MS technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | MSOP |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 1mA |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 7V/µs |
| Supply Current | 1mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 10MHz |
| Voltage Gain | 110dB |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6292T-E/MS Datasheet
Download the complete datasheet for Microchip MCP6292T-E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

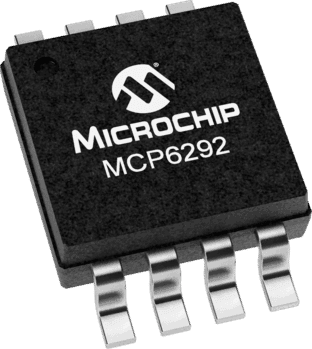

Product Images
