Quad operational amplifier featuring a 10MHz gain bandwidth product and 7V/µs slew rate. This general-purpose, CMOS amplifier offers a 110dB voltage gain and 25mA output current per channel. It operates from a 2.4V to 5.5V supply range and boasts a low 1pA input bias current. The device is housed in a 14-pin SOIC surface-mount package, with a maximum input offset voltage of 5mV and a common mode rejection ratio of 70dB.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6294T-E/SL technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 3mV |
| Input Offset Voltage-Max | 5mV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 7V/µs |
| Slew Rate-Nom | 7V/µs |
| Supply Current | 1mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 10MHz |
| Voltage Gain | 110dB |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6294T-E/SL Datasheet
Download the complete datasheet for Microchip MCP6294T-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

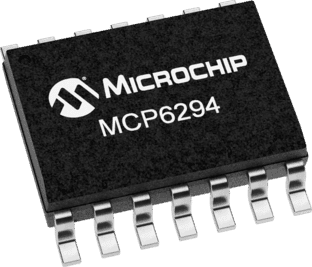

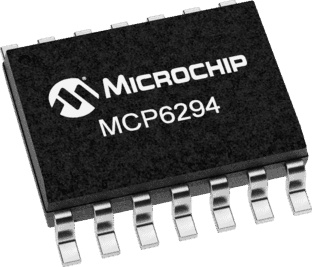

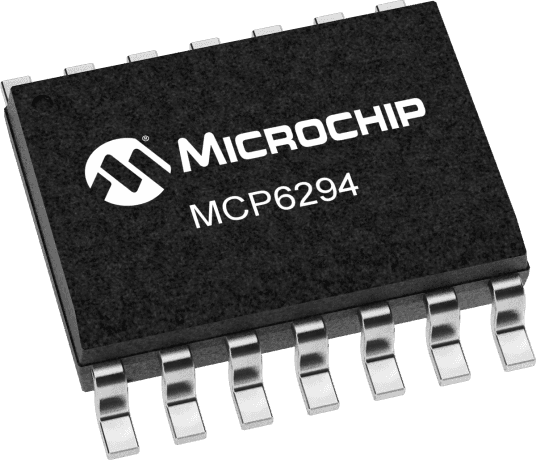

Product Images
