Dual general-purpose operational amplifier featuring CMOS technology. Offers a 9kHz bandwidth and 60dB Common Mode Rejection Ratio. Input bias current is 1pA with a maximum input offset voltage of 4.5mV. Operates from 1.4V to 6V supply voltage, with a 450nA supply current. Packaged in tape and reel with a compact 2mm x 3mm x 0.75mm footprint.
Current450nA
Quick Jump:
Technical Specifications
Microchip MCP6442T-E/MNY technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
9kHz
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
9kHz
Height
0.75mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
4.5mV
Input Offset Voltage-Max
4.5mV
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Output Current
22mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Slew Rate-Nom
0.003V/µs
Supply Current
450nA
Technology
CMOS
Unity Gain Bandwidth Product
9kHz
Voltage Gain
110dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6442T-E/MNY Datasheet
Download the complete datasheet for Microchip MCP6442T-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

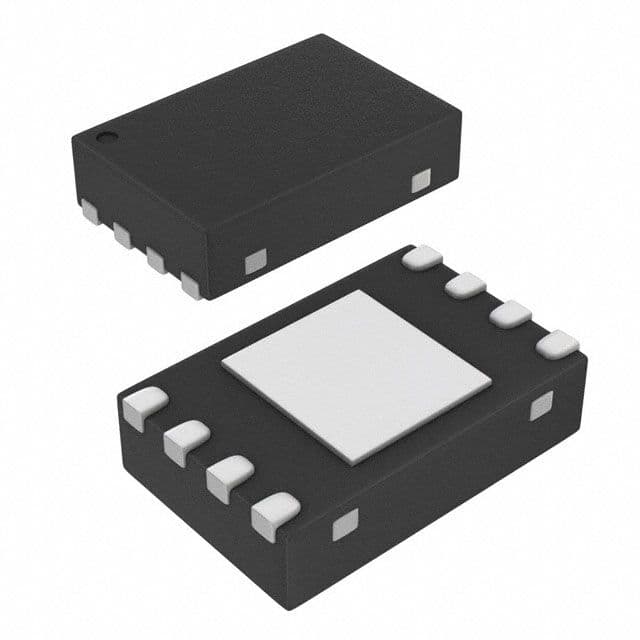

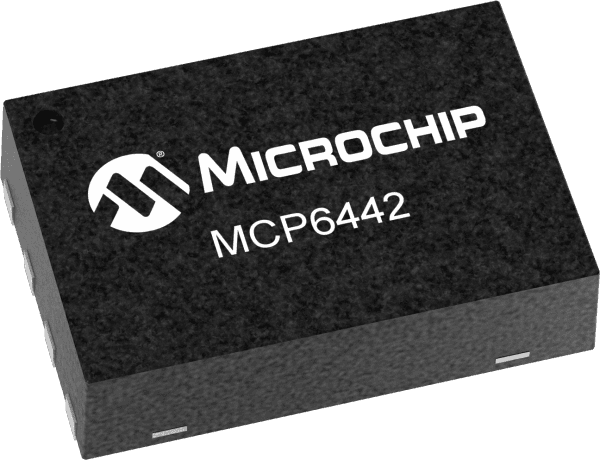

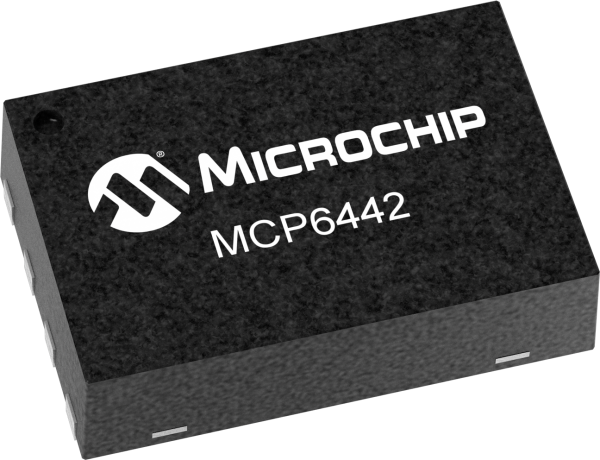

Product Images
