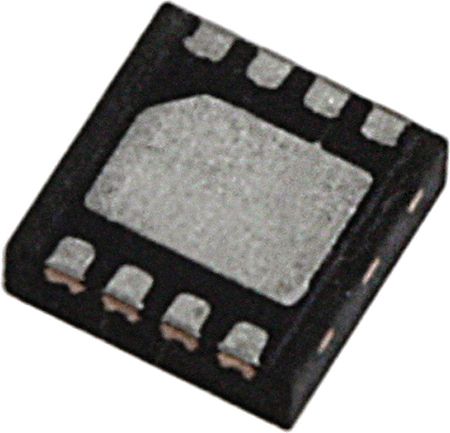

General purpose operational amplifier featuring a 50MHz bandwidth and 30V/µs slew rate. This single-channel IC offers a 200µV input offset voltage and 6pA input bias current, with a 123dB voltage gain. Operating from 2.5V to 5.5V, it delivers 100mA output current per channel. The surface mount component is housed in an 8-pin TDFN package and is RoHS compliant.
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP651T-E/MNY technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
50MHz
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
50MHz
Height
0.031inch
Input Bias Current
6pA
Input Offset Voltage (Vos)
200uV
Input Offset Voltage-Max
200uV
Lead Free
Lead Free
Length
0.078inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current
95mA
Output Current per Channel
100mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
61dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
mCal Technology
Slew Rate
30V/µs
Slew Rate-Nom
30V/µs
Supply Current
6mA
Unity Gain Bandwidth Product
50MHz
Voltage Gain
123dB
Width
0.118inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP651T-E/MNY Datasheet
Download the complete datasheet for Microchip MCP651T-E/MNY to view detailed technical specifications.
