Dual general-purpose comparator IC featuring CMOS technology. Offers a 7mV input offset voltage and 6.5mV hysteresis. Operates with a 1.6V to 5.5V supply range and provides a 4µs response time. Includes 70dB CMRR and 80dB PSRR. Packaged in a through-hole PDIP-8 with push-pull, TTL compatible outputs.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6542-E/P technical specifications.
General
Amplifier Type
COMPARATOR
Package/Case
PDIP
Common Mode Rejection Ratio
70dB
Height
0.195inch
Hysteresis
6.5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
10.16mm
Max Input Current
1pA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Mount
Through Hole
Number of Channels
2
Number of Elements
2
Output Type
PUSH-PULL, TTL
Package Quantity
60
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
8us
Quiescent Current
1uA
Reach SVHC Compliant
No
Response Time
4us
RoHS Compliant
Yes
Technology
CMOS
Type
General Purpose
Width
0.28mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6542-E/P Datasheet
Download the complete datasheet for Microchip MCP6542-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

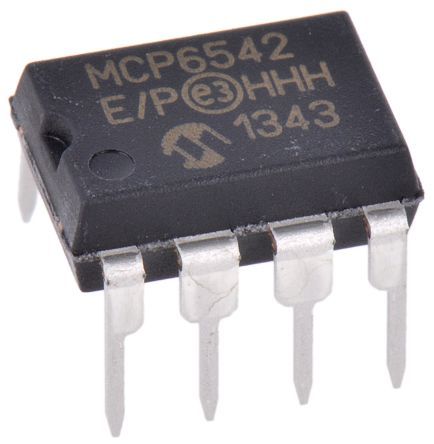

Product Images
