Dual general-purpose CMOS comparator IC featuring a 7mV input offset voltage and 6.5mV hysteresis. Offers a 4µs response time and 2mA output current per channel. Operates from 1.6V to 5.5V supply voltage with a maximum supply current of 1mA. Packaged in an 8-pin SOIC surface-mount package, this RoHS compliant component boasts 70dB CMRR and 80dB PSRR.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6542-I/SN technical specifications.
General
Amplifier Type
COMPARATOR
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Height
1.25mm
Hysteresis
6.5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
4.9mm
Max Input Current
1pA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Mount
Surface Mount
Natural Thermal Resistance
163°C/W
Number of Channels
2
Number of Elements
2
Output Current
2mA
Output Current per Channel
2mA
Output Type
PUSH-PULL, TTL
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
8us
Quiescent Current
1uA
Radiation Hardening
No
Response Time
4us
RoHS Compliant
Yes
Supply Current
1mA
Technology
CMOS
Type
General Purpose
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6542-I/SN Datasheet
Download the complete datasheet for Microchip MCP6542-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

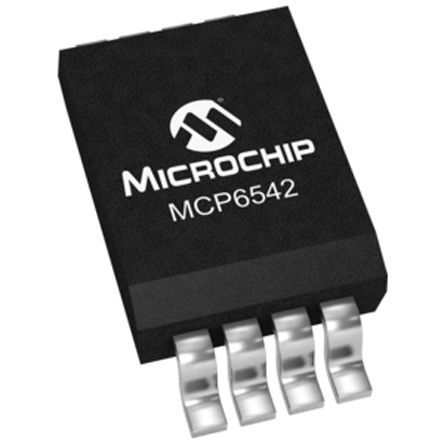

Product Images
