Quad general-purpose comparator IC featuring CMOS technology. Offers 4 independent comparator channels with push-pull, TTL compatible outputs. Key specifications include a 7mV input offset voltage, 6.5mV hysteresis, and a 8µs propagation delay. Operates from 1.6V to 5.5V supply voltage with a typical quiescent current of 1µA. Packaged in a 14-pin PDIP for through-hole mounting, this lead-free component is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6544-E/P technical specifications.
General
Amplifier Type
COMPARATOR
Package/Case
PDIP
Common Mode Rejection Ratio
70dB
Height
3.3mm
Hysteresis
6.5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
19.05mm
Max Input Current
1pA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Mount
Through Hole
Number of Channels
4
Number of Elements
4
Operating Supply Voltage
5V
Output Type
PUSH-PULL, TTL
Package Quantity
30
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
8us
Quiescent Current
1uA
RoHS Compliant
Yes
Technology
CMOS
Type
General Purpose
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6544-E/P Datasheet
Download the complete datasheet for Microchip MCP6544-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

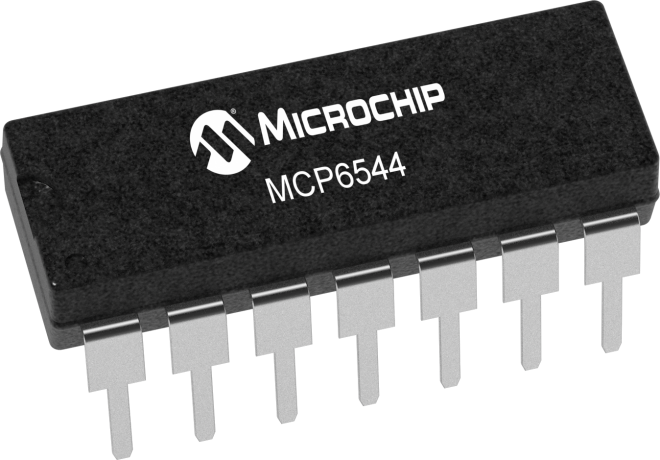

Product Images
