General purpose comparator IC featuring a single channel with TTL output. Offers a 7mV input offset voltage and 6.5mV hysteresis. Operates from a 1.6V to 5.5V supply range with a low quiescent current of 1uA. This surface mount component is packaged in MSOP with a 3000ns response time and 80dB PSRR.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6546T-E/MS technical specifications.
General
Package/Case
MSOP
Common Mode Rejection Ratio
70dB
Hysteresis
6.5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Max Input Current
1pA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
30mA
Output Type
TTL
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
8us
Quiescent Current
1uA
RoHS Compliant
Yes
Technology
CMOS
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6546T-E/MS Datasheet
Download the complete datasheet for Microchip MCP6546T-E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

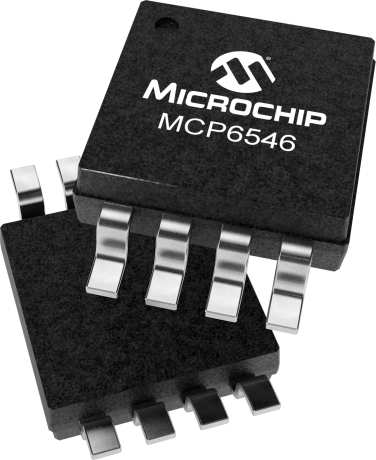

Product Images
