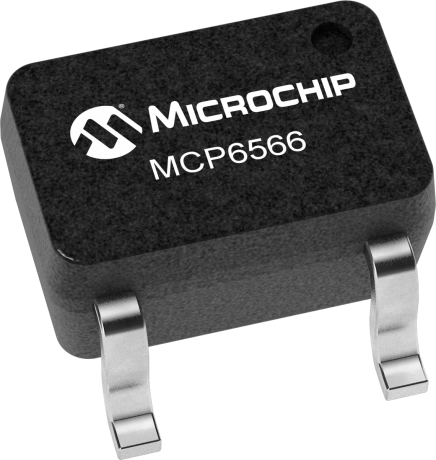

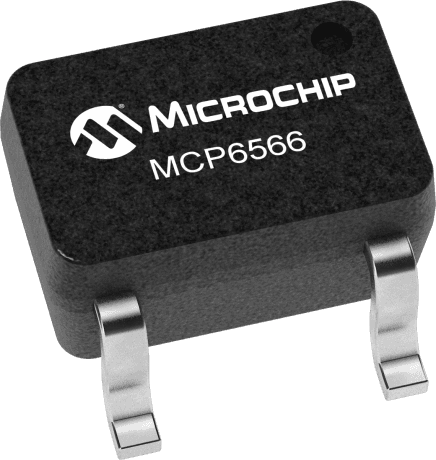

General purpose comparator IC featuring a 10mV input offset voltage and 5mV hysteresis. Offers a 49ns response time with a 130uA maximum supply current. Operates from 1.8V to 5.5V with a 5V nominal supply voltage. This single-channel, surface-mount device is housed in a 5-pin SC-70 package and provides CMOS output compatibility.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP6566T-E/LT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP6566T-E/LT technical specifications.
| Package/Case | SC |
| Common Mode Rejection Ratio | 66dB |
| Height | 1mm |
| Hysteresis | 5mV |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Input Current | 1pA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 130uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Compatibility | CMOS |
| Output Current | 50mA |
| Output Current per Channel | 30mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Propagation Delay | 80ns |
| Quiescent Current | 130uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 49ns |
| RoHS Compliant | Yes |
| Supply Current | 130uA |
| Technology | CMOS |
| Termination | SMD/SMT |
| Type | General Purpose |
| Width | 1.25mm |
| RoHS | Compliant |
