CMOS general-purpose comparator with a 56ns response time and 10mV input offset voltage. Features a 5mV hysteresis, 1pA input bias current, and 50mA output current. Operates from 1.8V to 5.5V supply voltage with a nominal supply current of 100uA. Packaged in a 5-pin SOT-23 surface mount package, this component offers 66dB CMRR and 70dB PSRR.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6566T-E/OT technical specifications.
General
Package/Case
SOT-23
Common Mode Rejection Ratio
66dB
Height
1.3mm
Hysteresis
5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Length
3.1mm
Max Input Current
1pA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Natural Thermal Resistance
256°C/W
Nominal Supply Current
100uA
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5V
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Propagation Delay
80ns
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
56ns
RoHS Compliant
Yes
Technology
CMOS
Type
General Purpose
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6566T-E/OT Datasheet
Download the complete datasheet for Microchip MCP6566T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

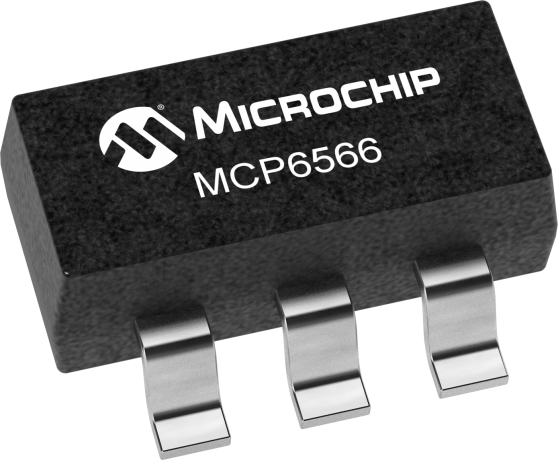

Product Images
