Microchip
MCP6569T-E/SL
QUAD COMPARATOR, 10000 uV OFFSET-MAX, 56 ns RESPONSE TIME, PDSO14, 3.90 MM, PLASTIC, LEAD FREE, SOIC-14
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6569T-E/SL technical specifications.
General
Package/Case
SOIC
Common Mode Rejection Ratio
66dB
Hysteresis
5mV
Input Bias Current
1pA
Input Offset Voltage (Vos)
10mV
Max Input Current
1pA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Output Current
50mA
Package Quantity
2600
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Propagation Delay
80ns
Quiescent Current
130uA
Radiation Hardening
No
RoHS Compliant
Yes
Technology
CMOS
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6569T-E/SL Datasheet
Download the complete datasheet for Microchip MCP6569T-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

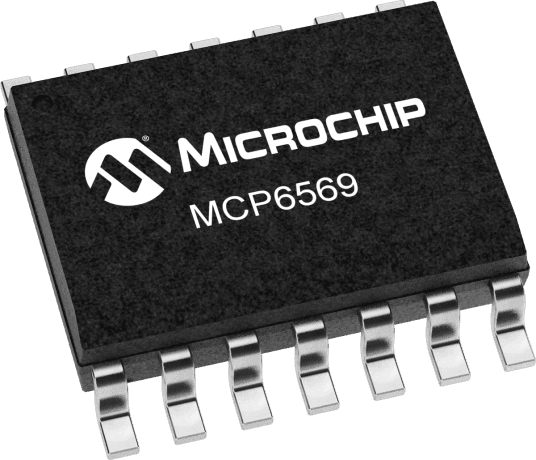

Product Images
