General purpose operational amplifier featuring a 1.2MHz gain bandwidth product and 0.8V/µs slew rate. This single-channel CMOS amplifier offers a 3.5mV maximum input offset voltage and 10nA input bias current. It operates with dual supply voltages from 1.75V to 5V, or single supply from 3.5V to 16V, with a maximum operating temperature of 125°C. Packaged in a 5-pin SC-70 surface mount configuration, it provides 84dB CMRR and 87dB PSRR.
PackageSC
Current135uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6H01T-E/LT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SC |
| Common Mode Rejection Ratio | 84dB |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 3.5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 1.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 8V |
| Output Current | 50mA |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 87dB |
| RoHS Compliant | Yes |
| Slew Rate | 0.8V/µs |
| Supply Current | 135uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.2MHz |
| Voltage Gain | 115dB |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6H01T-E/LT Datasheet
Download the complete datasheet for Microchip MCP6H01T-E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

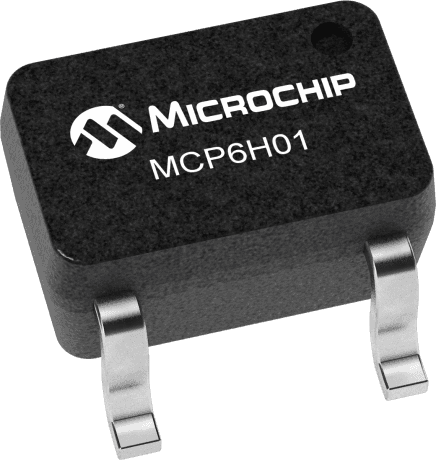

Product Images
