Quad operational amplifier featuring Rail-to-Rail input and output, ideal for general-purpose applications. This CMOS amplifier offers a 1MHz bandwidth and a 0.6V/µs slew rate, with a voltage gain of 105dB. Operating from 1.8V to 6V, it consumes 85µA supply current and delivers 20mA output current per channel. Packaged in a 14-pin TSSOP with surface mount capability, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current85uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6L04T-E/ST technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | TSSOP |
| Gain Bandwidth Product | 1MHz |
| Height | 1.05mm |
| Input Bias Current | 2pA |
| Input Offset Voltage (Vos) | 5mV |
| Input Offset Voltage-Max | 5mV |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 85uA |
| Output Current | 20mA |
| Output Current per Channel | 20mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Slew Rate-Nom | 0.6V/µs |
| Supply Current | 85uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 105dB |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6L04T-E/ST Datasheet
Download the complete datasheet for Microchip MCP6L04T-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

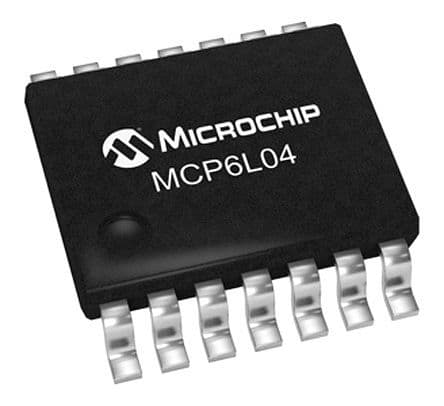

Product Images
