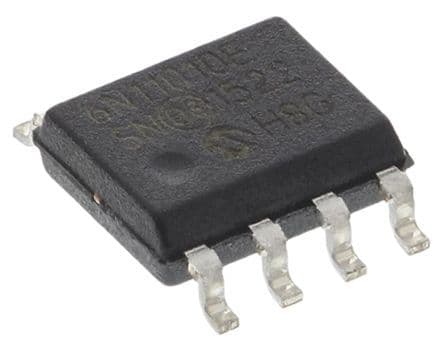

Single-channel instrumentation amplifier with rail-to-rail output and input. Features a 5MHz gain bandwidth product, 500kHz bandwidth, and 9V/µs slew rate. Operates from 1.8V to 5.5V supply voltage with a maximum supply current of 800µA. Offers 79dB common mode rejection ratio and 81dB power supply rejection ratio. Input offset voltage is 500µV with a 10pA input bias current. Packaged in a lead-free, RoHS compliant 8-pin SOIC surface mount package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP6N11-010E/SN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP6N11-010E/SN technical specifications.
| Bandwidth | 500kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 79dB |
| Gain Bandwidth Product | 5MHz |
| Height | 1.25mm |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 500uV |
| Input Offset Voltage-Max | 500uV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 800uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 81dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 9V/µs |
| Slew Rate-Nom | 9V/µs |
| Supply Current | 800uA |
| Unity Gain Bandwidth Product | 5MHz |
| Voltage Gain | 20dB |
| Width | 3.9mm |
| RoHS | Compliant |
