Instrumentation amplifier featuring a 1MHz gain bandwidth product and 500kHz bandwidth. Offers a low input bias current of 10pA and a maximum input offset voltage of 2mV. Operates with a supply voltage range of 1.8V to 5.5V and a maximum supply current of 800uA. This surface mount component is housed in a compact 3mm x 2mm SOIC package with a height of 0.75mm. It provides a Common Mode Rejection Ratio of 78dB and a Power Supply Rejection Ratio of 68dB.
PackageSOIC
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6N11T-002E/MNY technical specifications.
General
Bandwidth
500kHz
Package/Case
SOIC
Common Mode Rejection Ratio
78dB
Gain Bandwidth Product
1MHz
Height
0.75mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
2mV
Input Offset Voltage-Max
2mV
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
800uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
2
Package Quantity
3300
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
68dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
9V/µs
Supply Current
800uA
Unity Gain Bandwidth Product
1MHz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6N11T-002E/MNY Datasheet
Download the complete datasheet for Microchip MCP6N11T-002E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

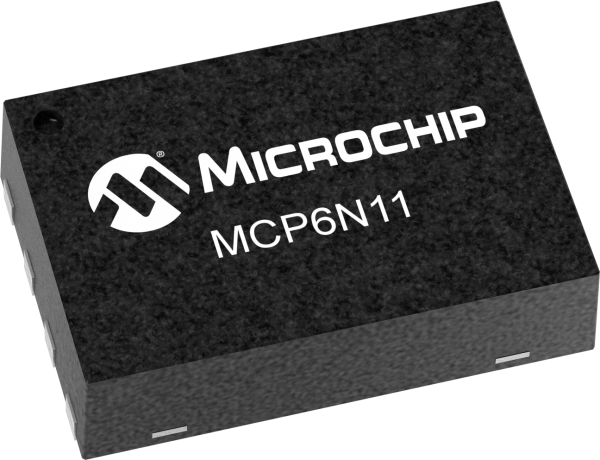

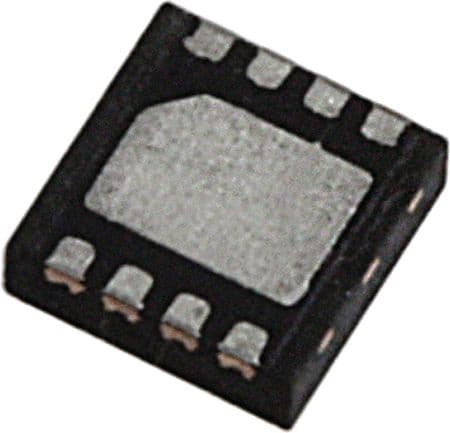

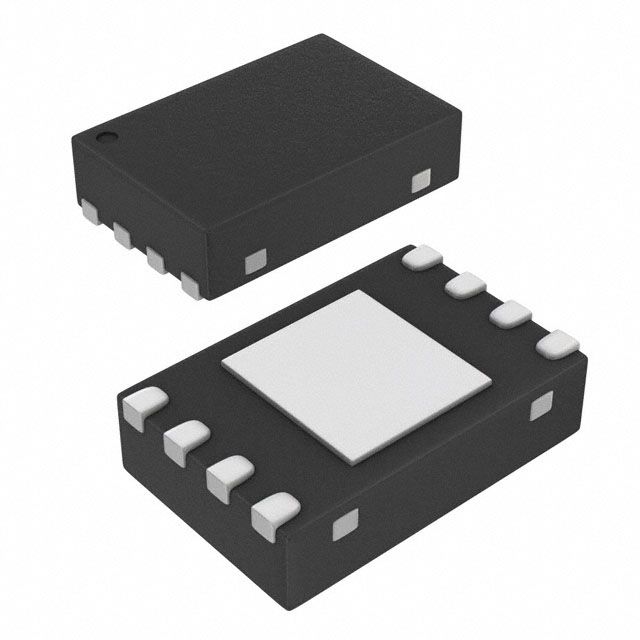

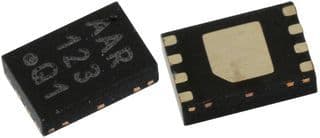

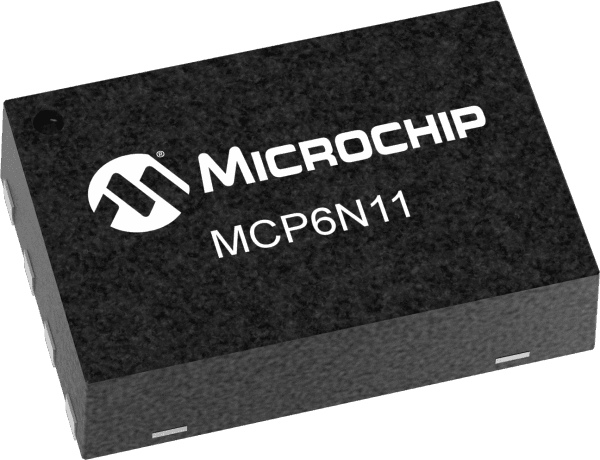

Product Images
