Instrumentation amplifier featuring a 5MHz gain bandwidth product and 500kHz bandwidth. Offers a low input offset voltage of 500uV and 10pA input bias current. Operates from 1.8V to 5.5V supply voltage with a maximum supply current of 800uA. This single-channel amplifier boasts a 81dB common mode rejection ratio and 81dB power supply rejection ratio. Packaged in a 3mm x 2mm x 0.75mm surface mount TDFN-8 package.
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6N11T-010E/MNY technical specifications.
General
| Bandwidth | 500kHz |
| Common Mode Rejection Ratio | 81dB |
| Gain Bandwidth Product | 5MHz |
| Height | 0.75mm |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 500uV |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 800uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Operating Supply Current | 800uA |
| Output Current per Channel | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 81dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 9V/µs |
| Supply Current | 800uA |
| Unity Gain Bandwidth Product | 5MHz |
| Voltage Gain | 20dB |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6N11T-010E/MNY Datasheet
Download the complete datasheet for Microchip MCP6N11T-010E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

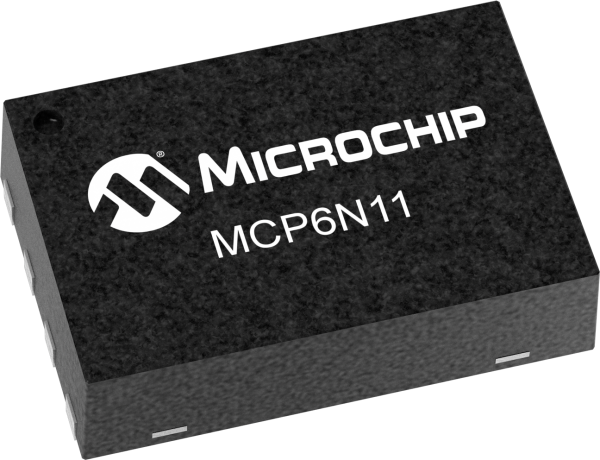

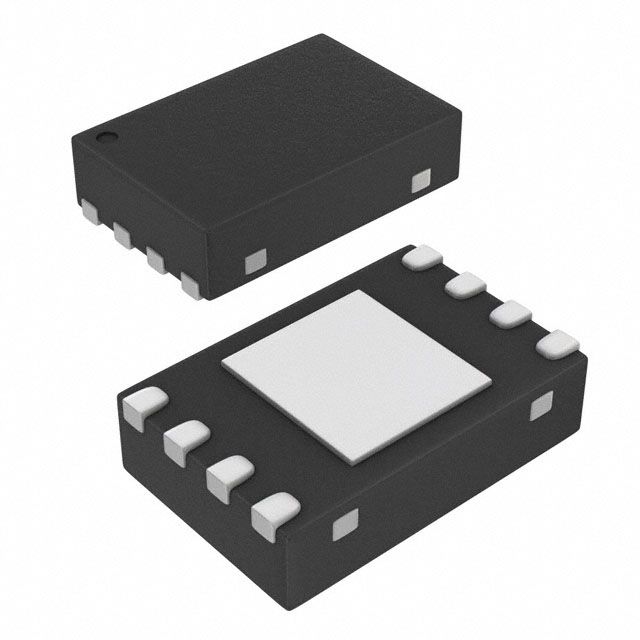

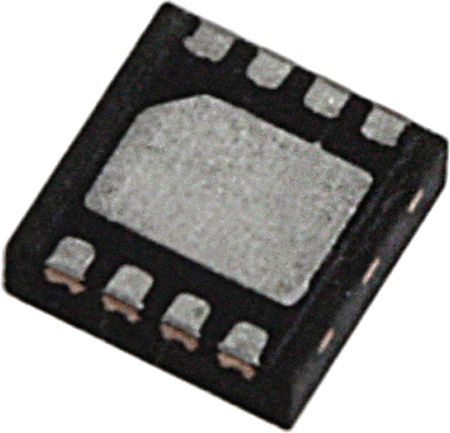

Product Images
