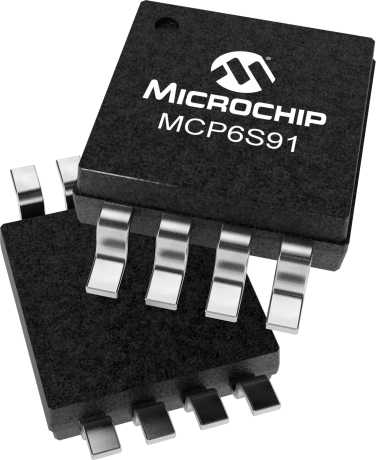

Single-channel, variable gain amplifier with Rail-to-Rail output. Features an 18MHz -3dB bandwidth and 18MHz gain bandwidth product. Operates from a 2.5V to 5.5V supply voltage, with a typical supply current of 1mA. Offers a 22V/µs slew rate and 25mA output current per channel. Packaged in an 8-pin MSOP for surface mounting.
PackageMSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6S91-E/MS technical specifications.
General
-3db Bandwidth
18MHz
Bandwidth
18MHz
Package/Case
MSOP
Gain Bandwidth Product
18MHz
Height
1.18mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
4mV
Input Offset Voltage-Max
4mV
Input Resistance
10000GR
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
5.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
5V
Output Current per Channel
25mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
22V/µs
Slew Rate-Nom
4V/µs
Supply Current
1mA
Voltage Gain
30.1dB
Width
5.08mm
Compliance
RoHS
Compliant
