Single-channel CMOS operational amplifier featuring a 1.3MHz bandwidth and 2µV maximum input offset voltage. This surface mount device offers a high 130dB common mode rejection ratio and power supply rejection ratio, with a 0.5V/µs slew rate. Operating from 1.8V to 5.5V, it consumes 300µA supply current and delivers 22mA output current. The compact DFN-8 package measures 2mm x 3mm with a 0.75mm height, suitable for lead-free and RoHS compliant applications.
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6V01T-E/MNY technical specifications.
General
| Bandwidth | 1.3MHz |
| Common Mode Rejection Ratio | 130dB |
| Gain Bandwidth Product | 1.3MHz |
| Height | 0.75mm |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 2uV |
| Input Offset Voltage-Max | 2uV |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 300uA |
| Output Current | 22mA |
| Output Current per Channel | 22mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 130dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.5V/µs |
| Slew Rate-Nom | 0.5V/µs |
| Supply Current | 300uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.3MHz |
| Voltage Gain | 156dB |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6V01T-E/MNY Datasheet
Download the complete datasheet for Microchip MCP6V01T-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

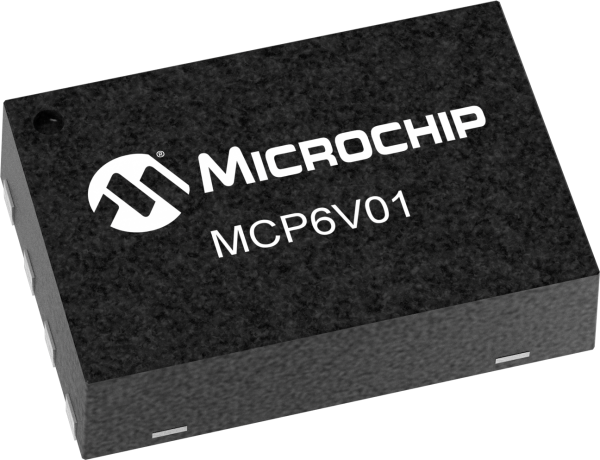

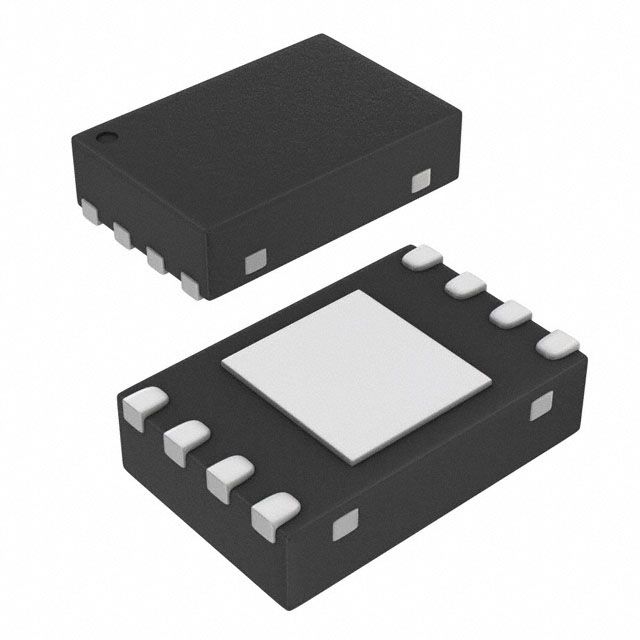

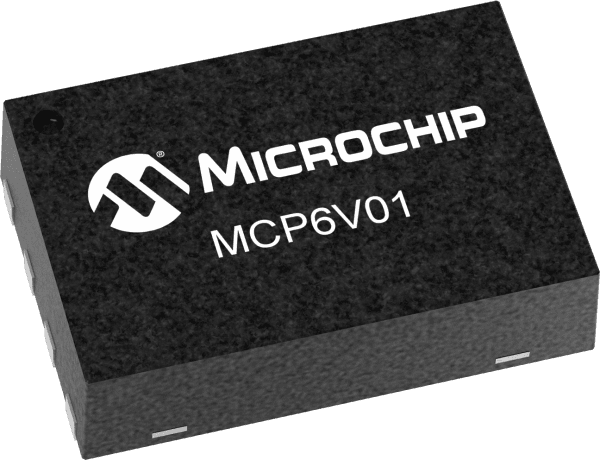

Product Images
