Linear battery charger controller for single-cell Li-Ion/Li-Pol batteries, featuring a 1.1A maximum charge current and 4.2V output voltage. This surface-mount DFN package component operates with a maximum input voltage of 18V and a maximum supply voltage of 6.5V, with a typical operating supply current of 700uA. It offers a wide operating temperature range from -40°C to 85°C and a low drain-to-source resistance of 350mR. The device is RoHS compliant and available in a 10-pin DFN package.
PackageDFN
Voltage Rating4.221V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73114-0NSI/MF technical specifications.
General
| Package/Case | DFN |
| Drain to Source Resistance | 350mR |
| Height | 0.88mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Charge Current | 1.1A |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.1A |
| Max Output Voltage | 4.221V |
| Min Output Voltage | 4.079V |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 4.2V |
| Mount | Surface Mount |
| Nominal Input Voltage | 4V |
| Number of Cells | 1 |
| Number of Channels | 1 |
| Operating Supply Current | 700uA |
| Output Current | 1.1A |
| Output Voltage | 4.2V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating | 4.221V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP73114-0NSI/MF Datasheet
Download the complete datasheet for Microchip MCP73114-0NSI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

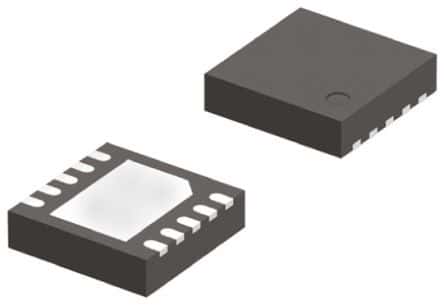

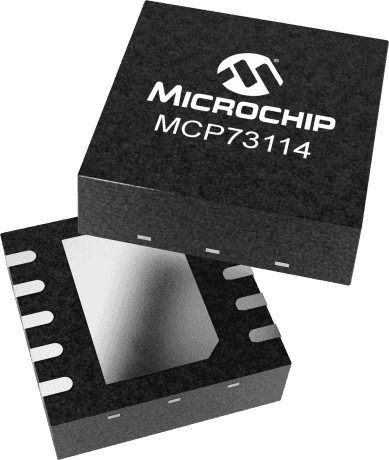

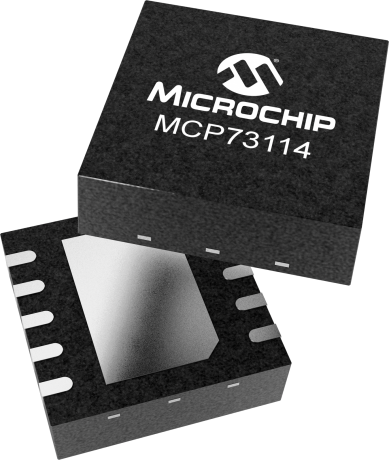

Product Images
