1-channel power supply support circuit, DFN-10 package, 3 x 3 mm, 0.90 mm height. Features include 1.1A max charge current, 1.1A output current, and 3.6V output voltage. Operates from 4.2V to 16V supply voltage with 13V typical operating supply voltage. Offers over voltage, over temperature, and reverse current fault protection. Lead-free and RoHS compliant, with a temperature range of -40°C to 85°C.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73123T-22SI/MF technical specifications.
General
Battery Pack Voltage
3.6V
Package/Case
DFN
Fault Protection
Over Voltage, Over Temperature, Reverse Current
Lead Free
Lead Free
Max Charge Current
1.1A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Cells
1
Operating Supply Current
700uA
Operating Supply Voltage
13V
Output Current
1.1A
Output Voltage
3.6V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP73123T-22SI/MF Datasheet
Download the complete datasheet for Microchip MCP73123T-22SI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

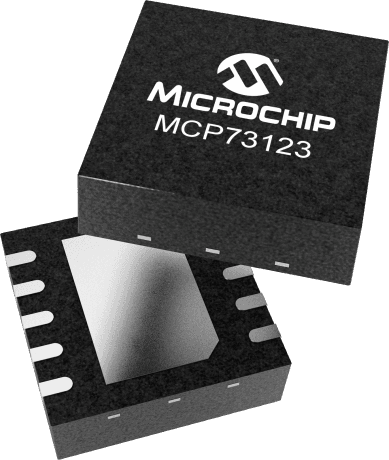

Product Images
