Linear battery charger controller for 2-cell Li-Ion/Li-Pol batteries, supporting up to 1.1A charge current and 8.4V battery pack voltage. Features include over-voltage fault protection, a maximum input voltage of 18V, and a maximum supply voltage of 13V. This surface mount component is housed in a 3mm x 3mm x 0.88mm DFN package. Operating temperature range is -40°C to 85°C, with a typical operating supply current of 700uA.
PackageDFN
Voltage Rating8.85V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73213-A6SI/MF technical specifications.
General
| Battery Pack Voltage | 8.4V |
| Package/Case | DFN |
| Drain to Source Resistance | 350mR |
| Fault Protection | Over Voltage |
| Height | 0.88mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Charge Current | 1.1A |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.1A |
| Max Output Voltage | 8.85V |
| Min Output Voltage | 8.15V |
| Max Supply Voltage | 13V |
| Min Supply Voltage | 4.2V |
| Mount | Surface Mount |
| Number of Cells | 2 |
| Number of Channels | 2 |
| Operating Supply Current | 700uA |
| Output Voltage | 8.4V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating | 8.85V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP73213-A6SI/MF Datasheet
Download the complete datasheet for Microchip MCP73213-A6SI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

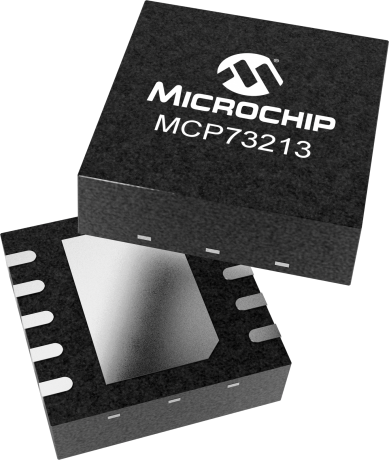

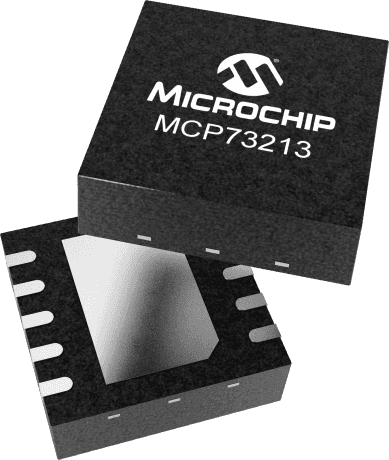

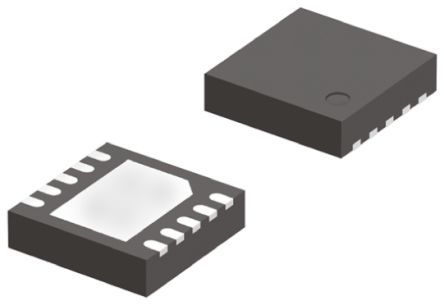

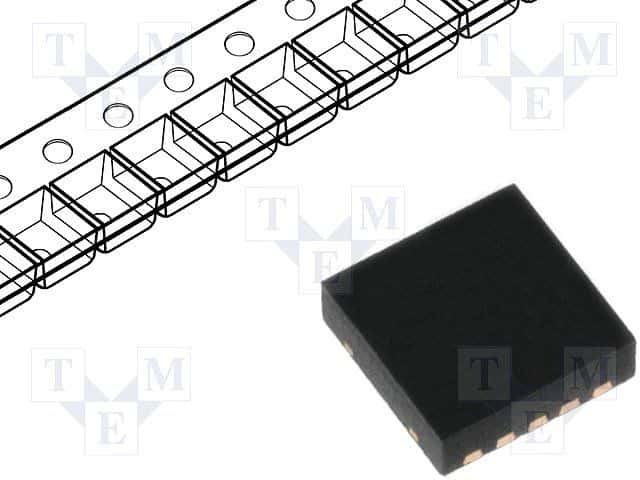

Product Images
