Linear battery charger controller for Li-Ion/Li-Pol applications, featuring a 1.1A maximum charge current and 8.2V output voltage. This 10-pin DFN package component supports 2 cells, operates from a 4.2V to 13V supply voltage, and offers a maximum input voltage of 18V. With a low drain-to-source resistance of 350mR and a compact 3mm x 3mm x 0.88mm footprint, it is designed for surface mount assembly. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
PackageDFN
Voltage Rating8.85V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73213-B6SI/MF technical specifications.
General
Package/Case
DFN
Drain to Source Resistance
350mR
Height
0.88mm
Lead Free
Lead Free
Length
3mm
Max Charge Current
1.1A
Max Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.1A
Max Output Voltage
8.85V
Min Output Voltage
8.15V
Max Supply Voltage
13V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Cells
2
Number of Channels
2
Operating Supply Current
700uA
Output Voltage
8.2V
Package Quantity
120
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating
8.85V
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP73213-B6SI/MF Datasheet
Download the complete datasheet for Microchip MCP73213-B6SI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

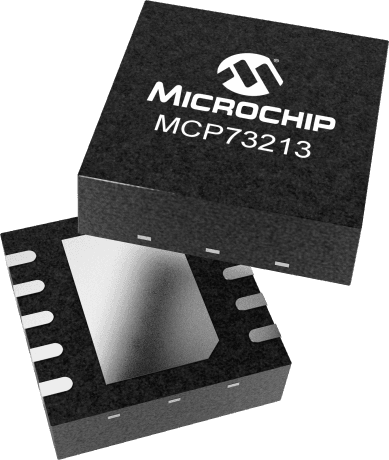

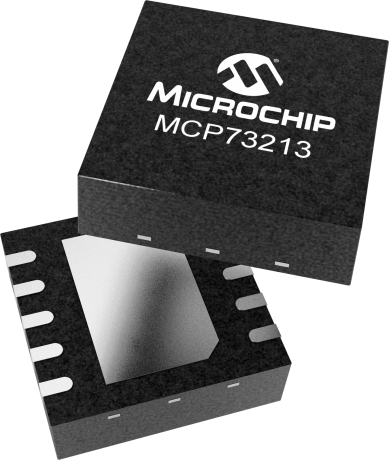

Product Images
