Linear battery charger controller for single-cell Li-Ion/Li-Pol batteries, featuring a 4.2V battery pack voltage and a maximum charge current of 500mA. This surface mount IC operates with a supply voltage range of 3.75V to 6V, delivering a maximum output current of 500mA at 4.2V. Packaged in a compact 5-pin SOT-23 (3.1mm x 1.8mm x 1.3mm), it offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73812T-420I/OT technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Package/Case | SOT-23 |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Charge Current | 500mA |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 4.2V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 3.75V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Number of Channels | 1 |
| Operating Supply Current | 1mA |
| Output Current | 500mA |
| Output Voltage | 4.2V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.00709oz |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP73812T-420I/OT Datasheet
Download the complete datasheet for Microchip MCP73812T-420I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

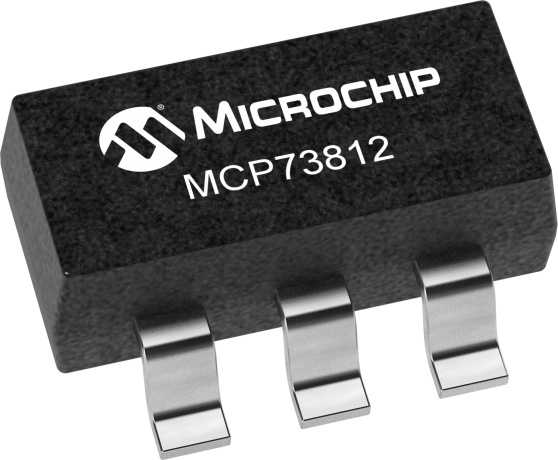

Product Images
