Linear battery charger controller for single-cell Li-Ion/Li-Pol batteries, featuring a 4.2V battery pack voltage and a maximum charge current of 500mA. This surface-mount IC offers over-voltage fault protection and operates within a supply voltage range of 3.75V to 6V. The output voltage is regulated to 4.2V, with a maximum output current of 500mA. Packaged in a compact 5-pin SOT-23, this lead-free component is supplied on tape and reel.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73831T-2ATI/OT technical specifications.
General
Battery Pack Voltage
4.2V
Package/Case
SOT-23
Fault Protection
Over Voltage
Height
1.3mm
Lead Free
Lead Free
Length
3.1mm
Max Charge Current
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
4.232V
Min Output Voltage
4.168V
Max Supply Voltage
6V
Min Supply Voltage
3.75V
Mount
Surface Mount
Number of Cells
1
Output Current
500mA
Output Voltage
4.2V
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP73831T-2ATI/OT Datasheet
Download the complete datasheet for Microchip MCP73831T-2ATI/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

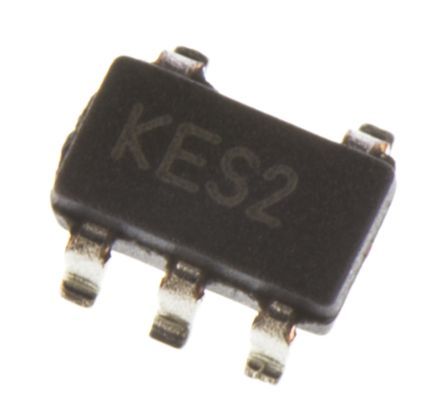

Product Images
