Microchip
MCP73833-AMI/MF
Linear Battery Charger Controller Li-Ion/Li-Pol 1000mA 4.2V 10-Pin DFN EP Tube
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73833-AMI/MF technical specifications.
General
Battery Pack Voltage
4.2V
Package/Case
DFN
Fault Protection
Over Temperature
Height
0.95mm
Lead Free
Lead Free
Length
3mm
Max Charge Current
1.1A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
4.533V
Min Output Voltage
4.168V
Max Supply Voltage
6V
Min Supply Voltage
3.75V
Mount
Surface Mount
Number of Cells
1
Output Current
1.2A
Output Voltage
4.5V
Package Quantity
120
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP73833-AMI/MF Datasheet
Download the complete datasheet for Microchip MCP73833-AMI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

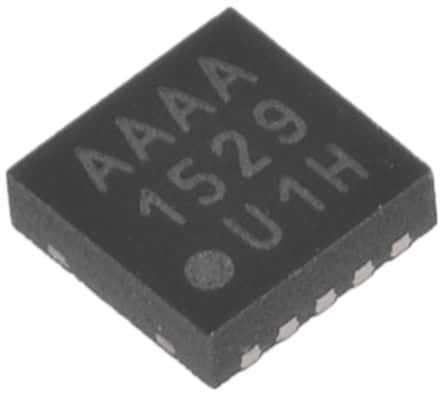

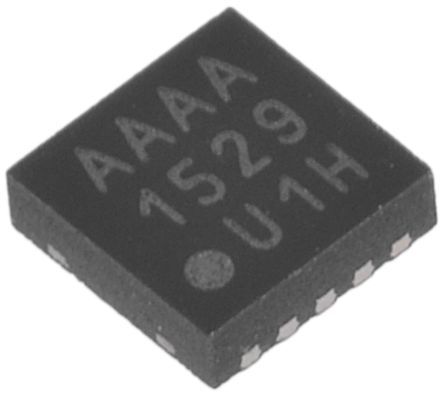

Product Images
