The MCP73838-NVI/MF is a 1-cell Li-ion charger IC with a maximum output current of 1.2A and a maximum output voltage of 4.35V. It operates within a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device is packaged in a DFN-10 package and is available in quantities of 120 per rail/Tube. It is not Reach SVHC compliant.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73838-NVI/MF technical specifications.
General
| Package/Case | DFN |
| Height | 0.88mm |
| Length | 3mm |
| Max Charge Current | 1A |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 4.5V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 3.75V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Current | 1.2A |
| Output Voltage | 4.35V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP73838-NVI/MF Datasheet
Download the complete datasheet for Microchip MCP73838-NVI/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

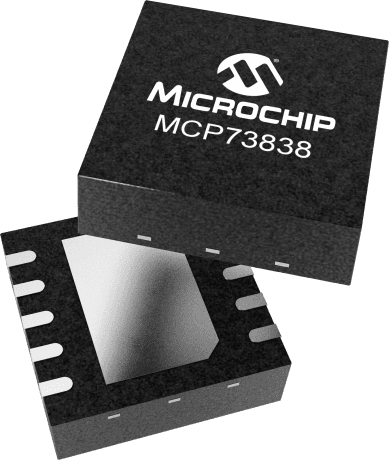

Product Images
