Linear Battery Charger Controller for 2-cell Li-Ion/Li-Pol batteries, featuring an 8.4V output voltage and a maximum charge current of 1A. This surface mount IC operates with a maximum input voltage of 13.5V and a supply voltage range of 8.7V to 12V. It includes over-temperature fault protection and offers a maximum output current of 150mA. The component is housed in a compact 10-pin MSOP package with dimensions of 3mm x 4.9mm x 1.1mm and is RoHS compliant.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP73842-840I/UN technical specifications.
General
Battery Pack Voltage
8.4V
Package/Case
MSOP
Fault Protection
Over Temperature
Height
1.1mm
Lead Free
Lead Free
Length
3mm
Max Charge Current
1A
Max Input Voltage
13.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
8.442V
Min Output Voltage
8.358V
Max Supply Voltage
12V
Min Supply Voltage
8.7V
Mount
Surface Mount
Nominal Supply Current
750uA
Number of Cells
2
Number of Channels
2
Operating Supply Current
750uA
Output Current
10mA
Output Voltage
8.4V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP73842-840I/UN Datasheet
Download the complete datasheet for Microchip MCP73842-840I/UN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

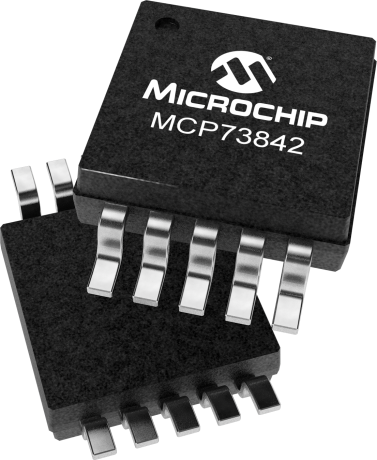

Product Images
