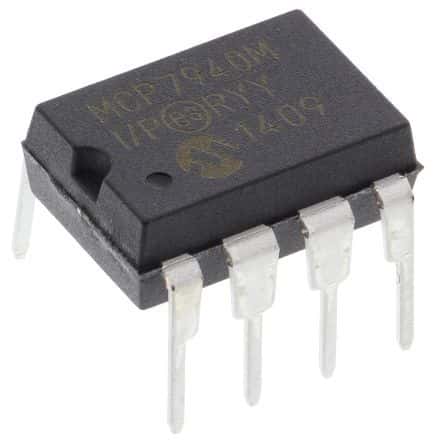

The MCP7940M-I/P is a 64-bit I2C real-time clock IC from Microchip, operating within a temperature range of -40°C to 85°C. It has a maximum supply voltage of 5.5V and a minimum supply voltage of 1.8V. The device is packaged in a PDIP package, with a height of 4.95mm, length of 10.16mm, and width of 7.11mm. The MCP7940M-I/P is RoHS compliant and has a lead-free finish.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP7940M-I/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP7940M-I/P technical specifications.
| Package/Case | PDIP |
| Height | 4.95mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64B |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Non-volatile Memory Size | 64B |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Temperature Grade | INDUSTRIAL |
| Time Format | HH:MM:SS |
| Weight | 0.032805oz |
| Width | 7.11mm |
| RoHS | Compliant |
