Microchip
MCP7940N-I/ST
Real Time Clock Serial 64byte Clock/Calendar/Alarm/Battery Backup Automotive 8-Pin TSSOP Tube
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP7940N-I/ST technical specifications.
General
Package/Case
TSSOP
Date Format
YY-MM-DD-dd
Height
1.05mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
4.5mm
Logic Function
Clock
Max Operating Temperature
85°C
Memory Size
64B
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Non-volatile Memory Size
64B
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Voltage-Nom
5.5V
Temperature Grade
INDUSTRIAL
Time Format
HH:MM:SS
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP7940N-I/ST Datasheet
Download the complete datasheet for Microchip MCP7940N-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

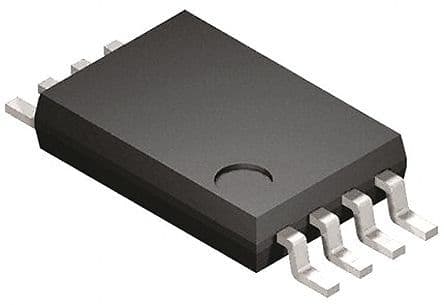

Product Images
