Real Time Clock (RTC) IC, MSOP package, featuring I2C and 2-wire serial interface. Supports YY-MM-DD-dd date format and HH:MM:SS time format. Operates with a supply voltage range of 1.8V to 5.5V and a temperature range of -40°C to 85°C. Includes 64B of memory and is RoHS compliant. Designed for surface mount applications with tape and reel packaging.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP7940NT-I/MS technical specifications.
General
Package/Case
MSOP
Date Format
YY-MM-DD-dd
Interface
I2C, Serial, 2-Wire
Logic Function
Clock
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64B
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Time Format
HH:MM:SS
Compliance
RoHS
Compliant
Datasheet
Microchip MCP7940NT-I/MS Datasheet
Download the complete datasheet for Microchip MCP7940NT-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

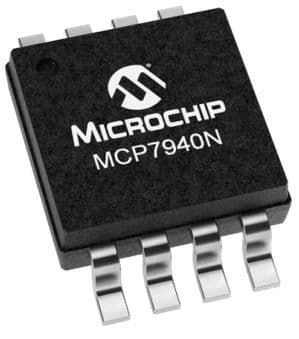

Product Images
