Automotive-grade supervisory circuit featuring a 4.375V threshold voltage with ±5% accuracy. This surface-mount integrated circuit monitors a single voltage, providing an active-low, totem-pole reset output with a 150ms timeout. Operating from 1V to 5.5V, it draws a maximum of 60µA quiescent current. Packaged in a 3-pin SOT-23, this RoHS-compliant component is supplied on tape and reel.
PackageSOT-23
Current45uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP809T-450I/TT technical specifications.
General
| Accuracy | -5% |
| Package/Case | SOT-23 |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.5V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 4.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 45uA |
| Threshold Voltage | 4.375V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP809T-450I/TT Datasheet
Download the complete datasheet for Microchip MCP809T-450I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

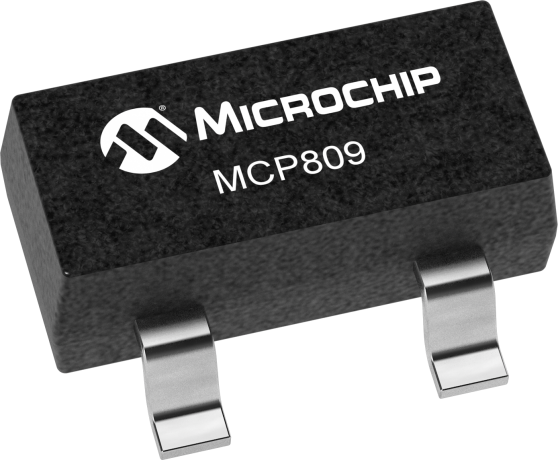

Product Images
