Automotive-grade supervisory circuit with a 4.625V threshold voltage, featuring a 4.5V undervoltage and 4.75V overvoltage threshold, accurate to -5%. This surface mount component, housed in a 3-pin SOT-23 package (2.9mm L x 1.3mm W x 0.95mm H), offers active low push-pull output and a 150ms reset timeout. It operates from 1V to 5.5V with a typical supply current of 60uA and a quiescent current of 45uA, suitable for temperatures from -40°C to 85°C. Packaged in tape and reel, this RoHS compliant integrated circuit is designed for simple reset and power-on reset applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP809T-475I/TT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

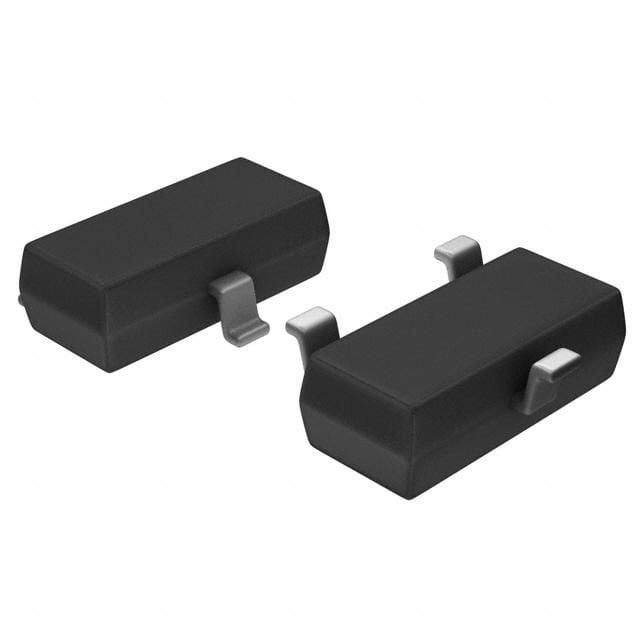

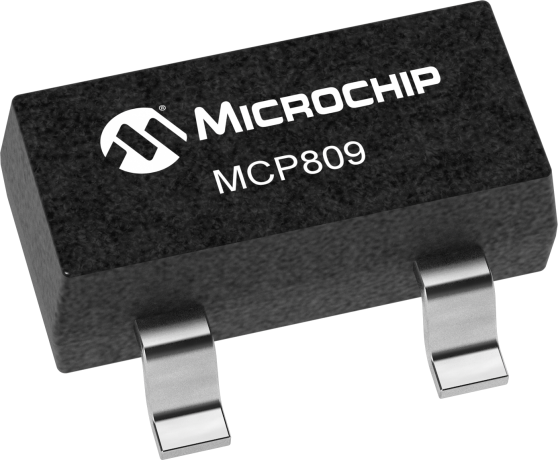

Microchip MCP809T-475I/TT technical specifications.
| Accuracy | -5% |
| Package/Case | SOT-23 |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.75V |
| Min Reset Threshold Voltage | 4.5V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 4.75V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 4.625V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.5V |
| Watchdog Timer | No |
| Width | 1.3mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP809T-475I/TT to view detailed technical specifications.
