Microchip
MCP9503NT-015E/OT
DIGITAL TEMP SENSOR-SINGLE TRIP POINT, 6Cel, RECTANGULAR, SURFACE MOUNT, LEAD FREE, PLASTIC, SOT-23, 5 PIN
PackageSOT-23
Current25uA
Quick Jump:
Technical Specifications
Microchip MCP9503NT-015E/OT technical specifications.
General
Accuracy
4%
Package/Case
SOT-23
Height
0.051inch
Lead Free
Lead Free
Length
0.122inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Operating Supply Current
25uA
Output Type
Analog
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensor Type
Temperature
Supply Current
25uA
Switching Temperature
-15°C
Termination
SMD/SMT
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP9503NT-015E/OT Datasheet
Download the complete datasheet for Microchip MCP9503NT-015E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

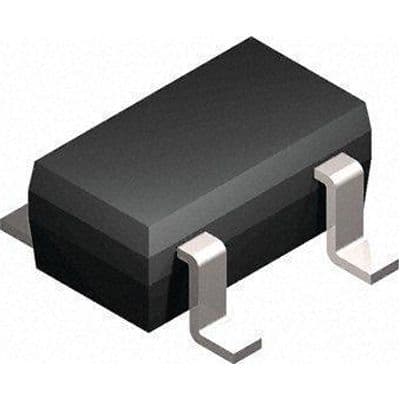

Product Images
